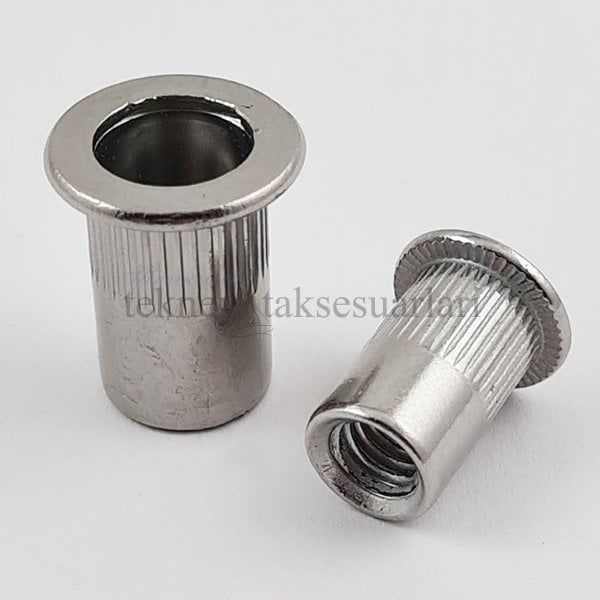

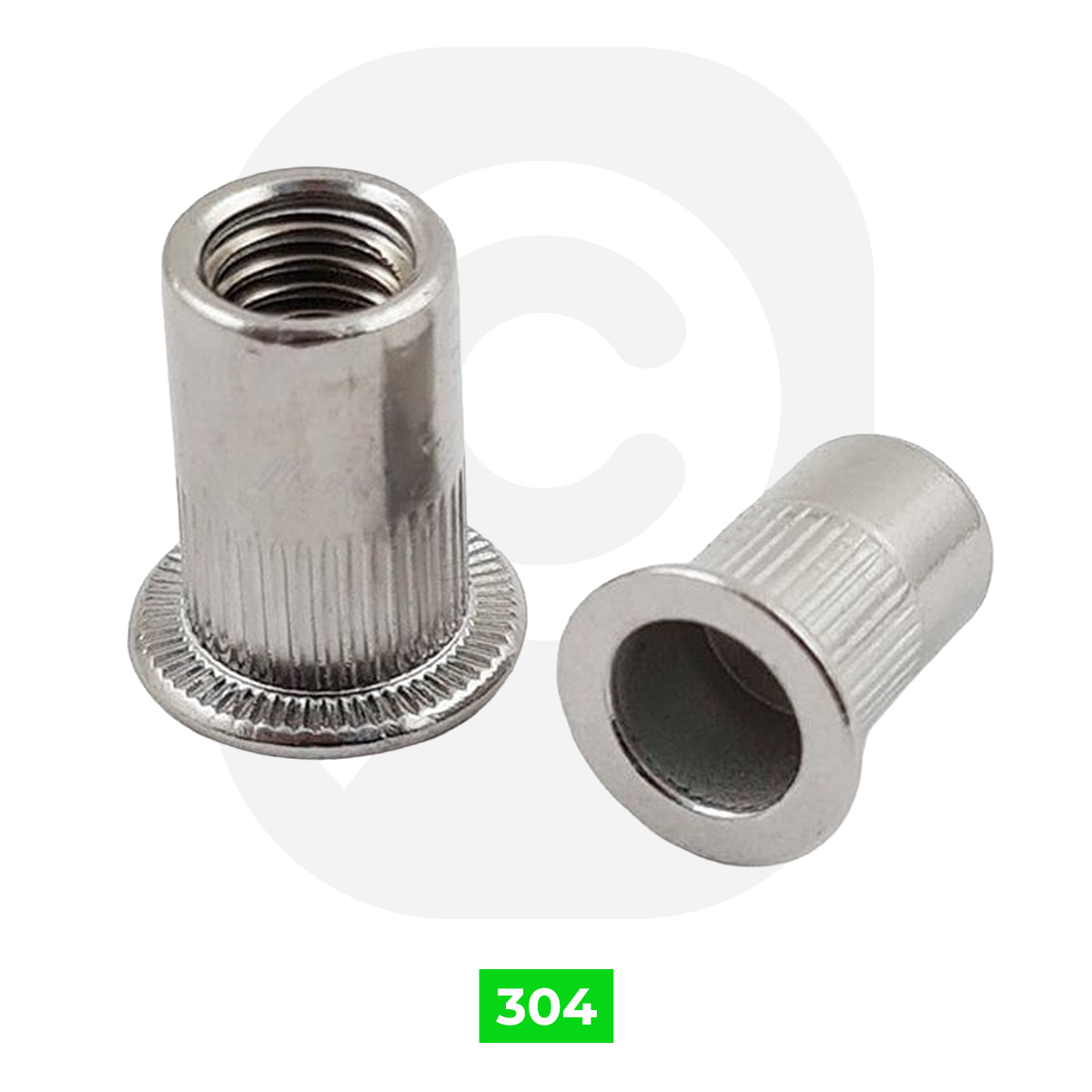

Paslanmaz Flanşlı Perçin Somun (DIN 9315)
Kategori
Marka
Stok Kodu
9315
Fiyat
7,26 TL + KDV
Havale
8,28 TL
(%5,00 havale indirimi)
*1,18 TL den başlayan taksitlerle!
8,71 TL
Paslanmaz Flanşlı Perçin Somun (DIN 9315)
| Ölçü (d1) | Boy (l1) | d2 (mm) | d3 (mm) | l2 (mm) | k (mm) | n | Sıkma Aralığı (mm) | Tork (Nm) | Makaslama (N) | Çekme (N) |
| M4 | 10,0 | 5,9 | 9,0 | 5,5 | 1,0 | 30 | 0,3 - 3,0 | 6,9 | 3.900 | 6.800 |
| M4 | 11,5 | 5,9 | 9,0 | 7,5 | 1,0 | 30 | 3,1 - 4,0 | 6,9 | 3.900 | 6.800 |
| M5 | 12,0 | 6,9 | 10,0 | 6,0 | 1,0 | 30 | 0,3 - 3,0 | 10,0 | 4.500 | 11.700 |
| M5 | 15,0 | 6,9 | 10,0 | 8,0 | 1,0 | 30 | 3,1 - 4,0 | 10,0 | 4.500 | 11.700 |
| M6 | 14,5 | 8,9 | 13,0 | 8,0 | 1,5 | 36 | 0,5 - 3,0 | 20,0 | 4.900 | 18.600 |
| M6 | 16,0 | 8,9 | 13,0 | 10,0 | 1,5 | 36 | 3,1 - 4,5 | 20,0 | 4.900 | 18.600 |
| M8 | 16,0 | 10,9 | 16,0 | 8,5 | 1,5 | 36 | 0,5 - 3,0 | 29,0 | 6.800 | 27.400 |
| M8 | 18,5 | 10,9 | 16,0 | 11,0 | 1,5 | 36 | 3,1 - 5,5 | 29,0 | 6.800 | 27.400 |
| M10 | 17,0 | 12,9 | 19,0 | 10,0 | 2,0 | 40 | 0,5 - 3,0 | 38,0 | 7.800 | 39.400 |
| M10 | 22,0 | 12,9 | 19,0 | 13,0 | 2,0 | 40 | 3,1 - 6,0 | 38,0 | 7.800 | 39.400 |
| M12 | 23,0 | 15,9 | 23,0 | 12,0 | 2,0 | 40 | 1,0 - 4,0 | 48,5 | 9.800 | 52.900 |
